Low Voltage Transformer for LED Lighting: What You Need to Know
LED lighting has become the default choice for homes, shops, hotels and industrial buildings, but the power supply side is where most installation problems start. LED strips, cabinet lights, landscape lights and many recessed fixtures run on 12V or 24V, and converting the mains supply down to that safe low voltage is the job of a low voltage transformer for LED lighting. Choosing the wrong one causes flicker, dimming failures, short lamp life and even fire risk.
Wilmall Transformers, a low-voltage transformer factory in Yueqing, Zhejiang, has 15 years of export experience serving the Middle East, Southeast Asia, Africa, South America and Central Asia. This guide covers magnetic transformers versus electronic LED drivers, sizing, dimming compatibility, and the voltage drop problem that ruins long LED runs.
Why LED Lighting Needs a Low Voltage Transformer
Most LED strips and fixtures sold for architectural and decorative lighting contain individual LED chips that operate at 2–4 V. The fixture integrates either constant-current drivers or current-limiting resistors, and expects to be fed from a stable 12V or 24V DC supply. Your mains supply at 110V, 220V or 240V cannot feed them directly. The power supply that sits between the wall and the fixture is often loosely called a “low voltage transformer for LED lighting”, and it exists in two fundamentally different forms.
- Magnetic (iron-core) transformers operate at 50/60 Hz and produce 12V AC. They are simple, robust and naturally isolated, and they remain the standard for low-voltage track systems and MR16 fittings that need 12V AC.
- Electronic LED drivers (switching power supplies) convert mains to 12V or 24V DC. They are efficient, compact and almost always required for LED strip and cabinet lighting.
The distinction matters. Feed a 12V DC strip from a magnetic transformer and the AC output can destroy it; feed a 12V AC MR16 lamp from a DC driver and it will not work. Always match the voltage type — AC or DC — to the fixture.
Magnetic Transformer vs Electronic Driver

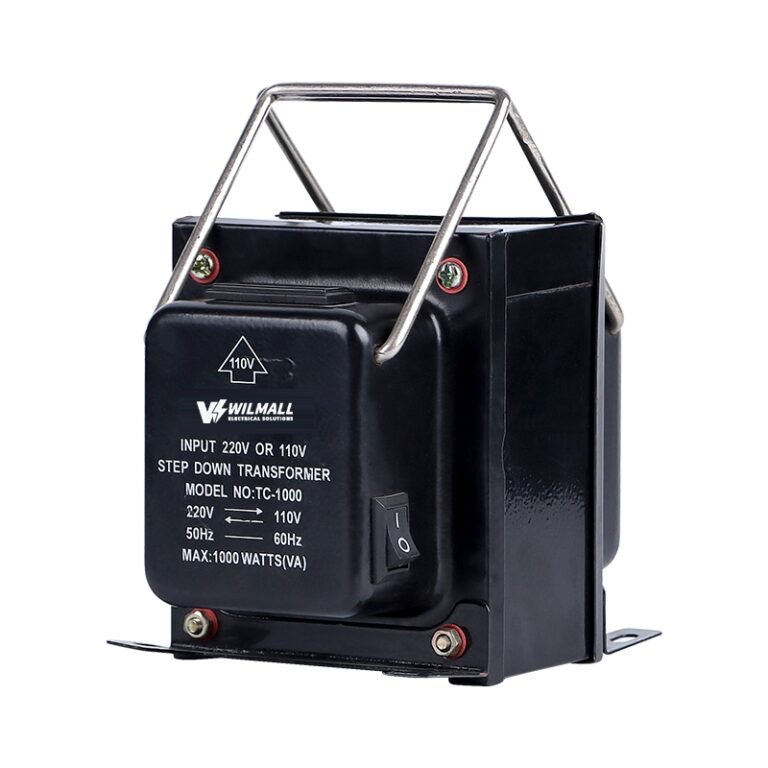

Magnetic Transformers
Magnetic step down transformers for LED track and MR16 lighting are available in 12V AC ratings. They are heavy but extremely reliable and handle the inrush of halogen-style loads easily. Two limitations matter: most need a minimum load (typically 20–50 W) to regulate properly, and they do not provide constant current. When the LED load is smaller than the transformer minimum, the output voltage can rise and shorten lamp life.
Electronic LED Drivers
Electronic drivers are the correct supply for the vast majority of LED strip installations. They output a regulated 12V or 24V DC with a specified current capacity, and they can drive loads down to a few watts without stability problems. High-quality drivers include overload, short-circuit and thermal protection, and many support dimming.
When installers ask us for a “low voltage transformer for LED lighting”, they usually need an electronic 12V/24V driver. But there is a large installed base of 12V AC track and landscape systems, and for those, a robust magnetic transformer remains the best value. Wilmall supplies both approaches: ST/STU step down transformers with 12V/24V secondary taps for AC fixtures, and the control transformer range for signal and control circuits.
How to Size a Low Voltage Transformer for LED Lighting
Step 1: Add the Total Fixture Wattage
Multiply the wattage per meter of your LED strip by the total installed length, or add the rated wattage of every lamp. For example, 10 meters of a 14.4 W/m strip equals 144 W.
Step 2: Apply the 20% Safety Margin
Never run a driver at 100% of its rating; continuous maximum load stresses the capacitors and accelerates failure. Divide total wattage by 0.8 to get the minimum rating: 144 W ÷ 0.8 = 180 W, so choose a 200 W driver. For strips on more than 8 hours a day, use a 25% margin.
Step 3: Account for Voltage Drop on Long Runs
Voltage drop is the number one cause of dim strips at the far end. A 12V system loses voltage quickly over distance; at 5 A, 10 meters of 1.5 mm² cable drops roughly 1.2 V, which is already 10% of the supply. Solutions in order of preference:
- Run 24V instead of 12V — double the voltage halves the current and quarters the cable loss for the same wattage.
- Use thicker cable, at least 2.5 mm² for runs above 5 meters.
- Feed the strip from both ends with two sets of wires back to the driver.
- Place the driver close to the midpoint of the strip rather than at one end.
Step 4: Match Voltage and Current Type
Confirm whether the fixture needs 12V AC, 12V DC or 24V DC before buying. For constant-current fixtures, note the drive current (typically 350 mA, 700 mA or 1,000 mA) and choose a driver with a matching output range.
Specification Table: Wilmall Low Voltage Options
| Output | Typical Rating | Max Strip Length | Best For |
|---|---|---|---|
| 12V DC | 60 W | ~4 m of 14.4 W/m | Under-cabinet lights, small signage |
| 12V DC | 120 W | ~8 m of 14.4 W/m | Kitchens, shelving, display cases |
| 24V DC | 100 W | ~10 m of 9.6 W/m | Architectural cove lighting |
| 24V DC | 240 W | ~16 m of 14.4 W/m | Long runs, outdoor landscape strips |
| 12V AC | 50–300 VA | Track and MR16 systems | 12V AC track, landscape and display lamps |
Wilmall’s ST/STU step down series can be wound with 12V or 24V secondary taps from 500 VA to 30 kVA for larger landscape and centralized bus projects. All units are CE/RoHS compliant and covered by a 12-month warranty.
Dimming: What Actually Works with LED
Dimming compatibility is the most common field problem in LED lighting. Three rules keep you out of trouble:
- Check the driver’s dimming protocol. Many LED drivers support TRIAC dimming (leading edge or trailing edge), 0–10V dimming, or DALI. A magnetic transformer without a compatible dimmer will produce loud buzzing and unstable light.
- Match the dimmer to the driver. Use the dimmer the manufacturer lists as compatible, or a trailing-edge dimmer designed for low inductive loads.
- Account for minimum load. If the dimmed LED load drops below the transformer’s minimum load requirement, output becomes unstable. This is why 12V AC systems with a few watts of LED are often better served by a purpose-built dimmable driver.
Applications and Environments
A low voltage transformer for LED lighting is used in these typical settings:
- Residential and hospitality: under-cabinet kitchen strips, wardrobe lighting, cove and valance lighting in hotels.
- Retail and display: shelf lighting, signage, jewelry cases and backlit panels where flicker-free output and color accuracy are critical.
- Landscape and outdoor: garden path lights, facade accents and signage fed by 12V/24V circuits, which are safer in wet environments than mains voltage.
- Industrial control: machine lighting and indicator lamps supplied from a centralized low-voltage bus.
For outdoor installations, IP-rated enclosures and the right cable gland prevent moisture ingress. For interior installations, the driver should be mounted with ventilation space around it; drivers derate at high ambient temperature.
Frequently Asked Questions
Can I use a low voltage transformer for LED lighting on dimmable strips?
Only if the driver and dimmer are compatible. Match the dimming protocol (TRIAC, 0–10V or DALI) and verify the minimum dimming load of the driver. If in doubt, test before installing the full run.
12V or 24V — which is better for LED strip?
For runs longer than 5 meters, choose 24V. It halves the current, reduces voltage drop dramatically and lets you use thinner cable. For short under-cabinet runs, 12V is fine and parts are cheaper.
Why is the end of my LED strip dimmer?
Voltage drop. Measure the voltage at the far end under load; if it is below the strip’s minimum input voltage (often 10.5V on a 12V strip), feed both ends, thicken the cable, or move up to 24V.
Can Wilmall build a custom 12V or 24V transformer for my project?
Yes. We manufacture custom step down transformers with 12V, 24V, 36V or 48V secondary windings from 500 VA to 30 kVA, with your specified input voltage, enclosure and terminal layout. MOQ is 10 units with a 15–25 day lead time.
Is a magnetic transformer or electronic driver more reliable?
For 12V AC fixtures, magnetic transformers are extremely reliable and last for decades. For LED strip and DC fixtures, an electronic driver from a reputable manufacturer, correctly sized with a margin, is the right choice. Both need to be protected from overload and moisture.
Get the Right Low Voltage Transformer for LED Lighting
Wilmall Transformers is a factory-direct manufacturer in Yueqing, Zhejiang, exporting low-voltage transformers and LED power solutions to distributors and project contractors for 15 years. We support OEM/ODM customization, from custom secondary voltages and enclosures to your own label and packaging. Request a quote through the website form, contact us on WhatsApp, or email info@wilmall.com — our engineers will confirm the correct driver rating and wiring layout for your project.
Dimming and Compatibility with LED Drivers
One detail that matters when running LED lighting through a low-voltage transformer is the driver compatibility. Most modern LED drivers accept a wide input range, typically 100-240V, which means they often do not need a transformer at all, only a plug adapter. The LEDs that do need a transformer are the older 12V or 24V strip systems and the halogen-replacement bulbs that expect a specific low voltage. When a transformer feeds LED drivers, check that the transformer output matches the driver input, and remember that some electronic drivers do not like the square-wave output of a cheap converter, which is why a genuine copper-wound transformer is the safer choice. We supply 12V and 24V transformers for LED strip and spot lighting, and our engineers can confirm whether your system needs one or runs directly on mains.
