Step Down Transformer for Coffee Machine and Espresso Maker

An espresso or coffee machine is one of the most popular reasons people buy a step-down transformer. The machine is expensive, the power draw is high, and an undersized transformer ruins coffee. This guide covers sizing, selection and protection for any 220V country.

Coffee machine power draw and surge

An espresso machine has two big loads: a heating element to keep the boiler at brewing temperature (800-1500W continuous) and a vibration pump that delivers water through the group head (400-700W surge at every shot). Both run together when you brew. A 1500W espresso machine can pull 1700-2200W at peak, which is the sizing factor for the transformer.

Coffee machines are also sensitive to voltage. Low voltage makes the heating element underperform, leading to lukewarm cold espresso. High voltage shortens element life. A transformer that delivers accurate 110V output matters for both taste and longevity.

What size transformer do you need?

Machine	Heating	Pump surge	Recommended transformer
Drip coffee maker (home)	600-900W	—	1000VA
Single-boiler espresso (home)	1000-1300W	100-200W	1500-2000VA
Dual-boiler espresso (home / small café)	1500-2200W	300-600W	2000-3000VA
Commercial espresso machine	2500-4500W	600-1500W	5000-7500VA
Coffee grinder (standalone)	—	300-1500W	1000VA

Why transformer accuracy matters for coffee

Voltage accuracy affects coffee in two ways. First, low voltage makes the heating element run cool, so the brew temperature drops below the 92-96°C window that good espresso needs. Second, the pump runs slower, so extraction time changes and the taste shifts. A transformer that delivers 110V accurately keeps the machine in spec.

For this reason, choose an isolation transformer with a tightly wound secondary, not an autotransformer with a wide output swing.

Continuous duty for café and home use

Coffee machines in cafés run 8-12 hours a day, often with no idle time between customers. The transformer must be rated for continuous duty at the expected load. A 2000VA transformer running at 1500W continuous is at 75% load — within the safe zone. A 1500VA transformer running the same load is at 100% load, which shortens life and trips thermal protection in warm ambient.

For home use with two or three cups a day, the same size rules apply because the machine stays on continuously to keep the boiler hot.

Water hardness and boiler scale

Hard water leaves scale on heating elements and inside boilers. Scale insulates the element, making the machine work harder to reach the target temperature. A transformer that delivers accurate voltage compensates for some of this — the heating element runs at design power despite the scale — but the long-term solution is water softening or regular descaling. Either way, the transformer’s continuous-duty rating keeps the machine stable under load.

Common residential and commercial machines

• Breville Bambino Plus — 1600W heating + 100W pump, choose 2000VA.
• De’Longhi Magnifica — 1450W heating + 200W pump, choose 2000VA.
• Gaggia Classic Pro — 1300W heating + 200W pump, choose 2000VA.
• Rancilio Silvia — 1100W heating + 100W pump, choose 1500VA.
• La Marzocco Linea Mini — 2200W dual boiler, choose 3000VA.
• Nuova Simonelli Appia II — 4500W commercial, choose 5KVA.

For any machine you are sizing, check the manufacturer’s published input wattage and add 25% margin to size the transformer.

Cord, plug and water splash

Commercial espresso machines in cafés are often installed close to the bar sink. The transformer should be mounted away from splash zones — at least 60 cm from the sink edge — and protected by a drip shield if mounting on a low shelf. The Wilmall ST and STU enclosures are IP20 rated and suitable for dry indoor locations; for wet locations, ask about IP54 enclosures.

Always use a grounded outlet. The transformer must be earthed through its primary lead for safety. RCD protection on the transformer adds another layer of shock protection, especially important in cafés where staff work quickly with wet hands.

Daily maintenance and care

Keep the transformer case clean and free of coffee dust. Wipe the vents with a dry cloth monthly to prevent dust buildup. Check the primary and secondary wiring connections annually for tightness — vibration from continuous operation can loosen terminal screws over time.

If the transformer ever stops working, do not open it. Return it to the supplier under warranty. Opening the case voids the warranty and exposes live windings.

Buying a transformer from a Chinese factory

Buying direct from a Chinese transformer factory gives you the best price and the most flexible customisation. Wilmall supplies ST and STU series step-down transformers factory direct from Yueqing, China, with MOQ 10 pcs per model and 15-25 day lead time. CE / RoHS documents and batch test reports are included with each order.

Private labelling is available with your brand, logo, colour and packaging. For café or hotel chains wanting their own branded transformer, OEM is the right model. Specify the input voltage, output voltage, VA rating, sockets and label design when requesting a quotation.

Why Wilmall for coffee machine transformers

Wilmall has been supplying step-down transformers to coffee equipment distributors and importers across the Middle East, Southeast Asia and Africa for over a decade. Our ST and STU series are designed for continuous duty, accurate output and RCD-protected safety. MOQ 10 pcs lets you start small; production capacity scales to container orders without delay.

Email sales@wilmall.com or WhatsApp +86 197 3022 6757 with your machine model and target market. We reply within 24 hours.

Power quality considerations

If the local 220V supply has frequent spikes, surges or brown-outs, add a surge protector on the primary side of the transformer. The transformer itself handles slow voltage variation but can be damaged by fast transients from lightning or grid switching. A surge protector costs little and protects a transformer that costs more.

For very dirty power (large voltage spikes, frequent brown-outs, generator use), consider a stabiliser between the mains and the transformer input. The combination of stabiliser + transformer is the standard setup for sensitive equipment in markets with unstable supply.

What about the steam wand

The steam wand on an espresso machine draws additional power when in use. A dual-boiler machine with simultaneous brewing and steaming may pull 200-400W more than during brewing alone. If your barista makes back-to-back lattes, the average load stays higher than during single-shot brewing. Choose the transformer with this sustained higher load in mind.

Should I include the grinder?

If you plug the espresso machine and the grinder into the same transformer, add the grinder’s surge to the heating load. A 1500W espresso machine plus a 1500W grinder at surge totals 3000W — choose a 3000VA transformer. If the grinder runs on its own circuit, size the transformer for the espresso only.

RCD and water protection

Coffee machines sit on countertops next to water, so RCD (residual current device) protection on the transformer is important. The RCD trips on leakage current before the user touches the machine’s metal parts. The Wilmall ST-2000 includes RCD protection as standard. Keep the transformer away from splashes and steam.

Voltage considerations for 240V markets

If you are running a US coffee machine in a 240V market (Qatar, Malaysia, Kenya), a 220V primary may deliver 120V on a 240V input. Choose a unit wound for 240V primary or with input taps (220V / 240V) to keep the output accurate. The Wilmall ST series is available with 240V primaries on request.

Common mistakes

• Sizing to the heating element only. The pump surge at peak is the killer.
• Using an electronic converter. Most cannot start the pump motor or sustain heating element load.
• Skipping RCD protection. Coffee machines sit in water-risk environments.
• Loading to 100%. Continuous-duty machines need 25% margin.
• Confusing VA with watts. They are not the same; motors need VA headroom.

Recommended transformers from Wilmall

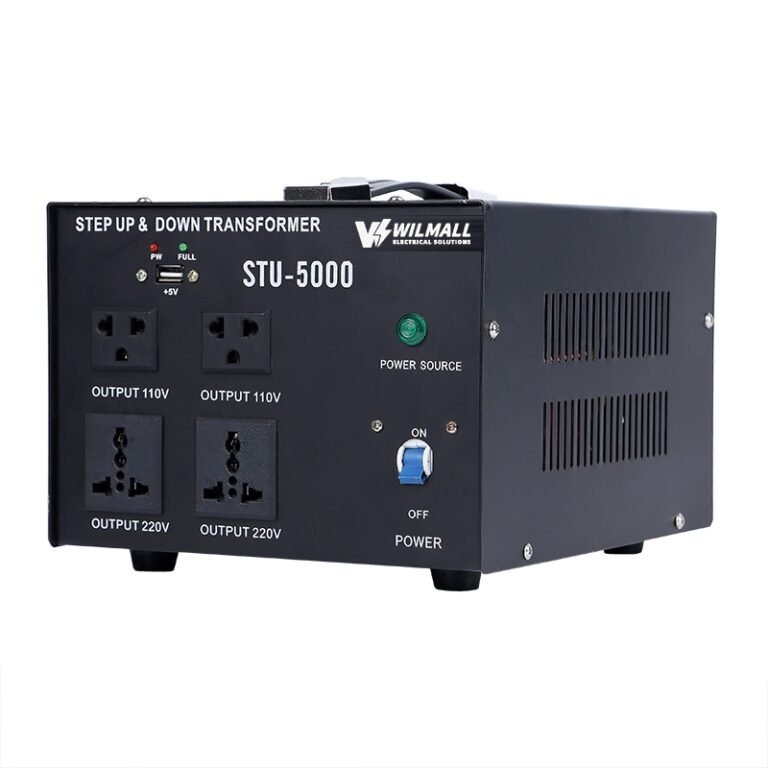

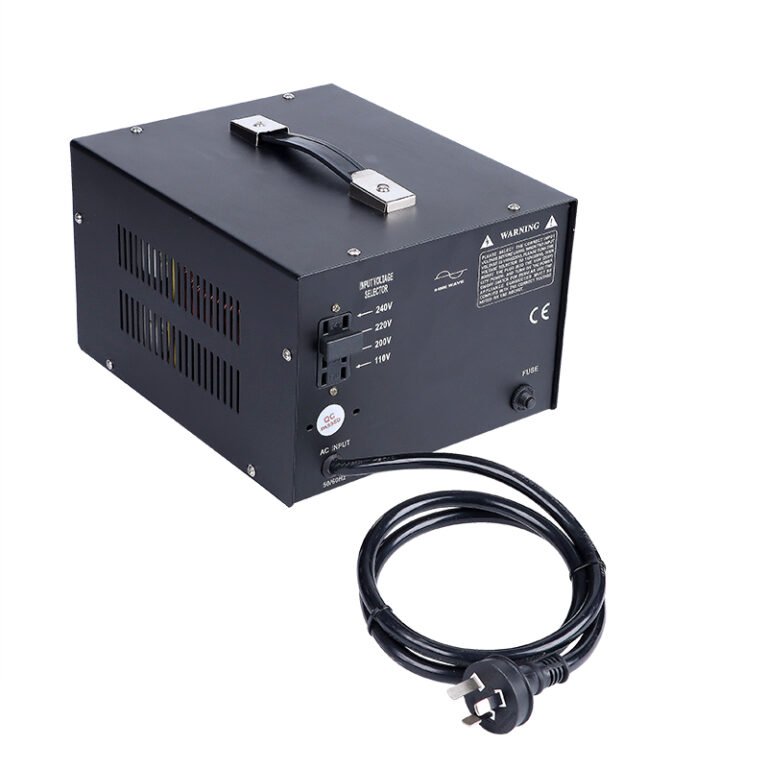

For home espresso machines, the ST-2000 (2000VA) is the typical size. For commercial machines, the STU-3000 (3000VA) or STU-5000 (5000VA). Wilmall builds ST series step-down transformers in 500VA, 1000VA, 1500VA, 2000VA, 3000VA and 5000VA ratings, all with copper winding, full RCD protection and 12-month warranty.

Email sales@wilmall.com or WhatsApp +86 197 3022 6757 with your machine model and number of cups per day. We reply within 24 hours.

Frequently asked questions

Coffee Machine Sizing: Heater, Pump, and Grinder

A coffee machine has three distinct loads that matter for sizing: the heating element that warms the water, the pump that pushes it through the grounds, and, on espresso machines, the grinder. A drip coffee maker draws 600W to 1000W, an espresso machine with a pump can draw 1200W to 1500W during heating, and the grinder adds a motor spike when it runs. The practical sizing is 1500VA to 2000VA for a drip machine and 2000VA to 3000VA for an espresso machine, because the heater and the pump can run at the same time. The heater runs in cycles, so the transformer must handle the repeated on-off without overheating. If you send us the coffee machine model or its nameplate rating, we will confirm the exact transformer size, and we will recommend the ST series for its continuous-duty rating and thermal protection.
