Step Down Transformer for Air Fryer: 220V to 110V Guide
If you bought a US air fryer and moved to a 220V country, you already know the problem: plug it in and nothing happens, or worse, it lets out the magic smoke. Air fryers are simple heaters with a fan, but they draw a lot of current, and the right step down transformer is what keeps them cooking instead of dying. Here is what you need to size one, wire it, and use it safely for years.
Why an air fryer needs a real transformer, not a travel converter
Most travel converters are rated 50W to 200W, just enough for a phone charger or a laptop. An air fryer pulls 1200W to 1800W while the heating element is on, and it stays on for minutes at a time. A converter at that load overheats in about thirty seconds. What you need is a proper step down transformer with a copper winding, rated for continuous duty, and a real RCD inside for protection.
The short answer is: buy a 220V to 110V step down transformer rated at 2000VA or more for a standard air fryer, and check your model number before you order. We will walk through the exact math below.
Step down transformer size for air fryer: the real numbers
| Air fryer capacity | Nameplate wattage | Start-up draw | Recommended transformer |
|---|---|---|---|
| 2-3.5 L (compact) | 900-1300W | ~1400W | 1500-2000VA |
| 4-6 L (family size) | 1400-1700W | ~1900W | 2000VA |

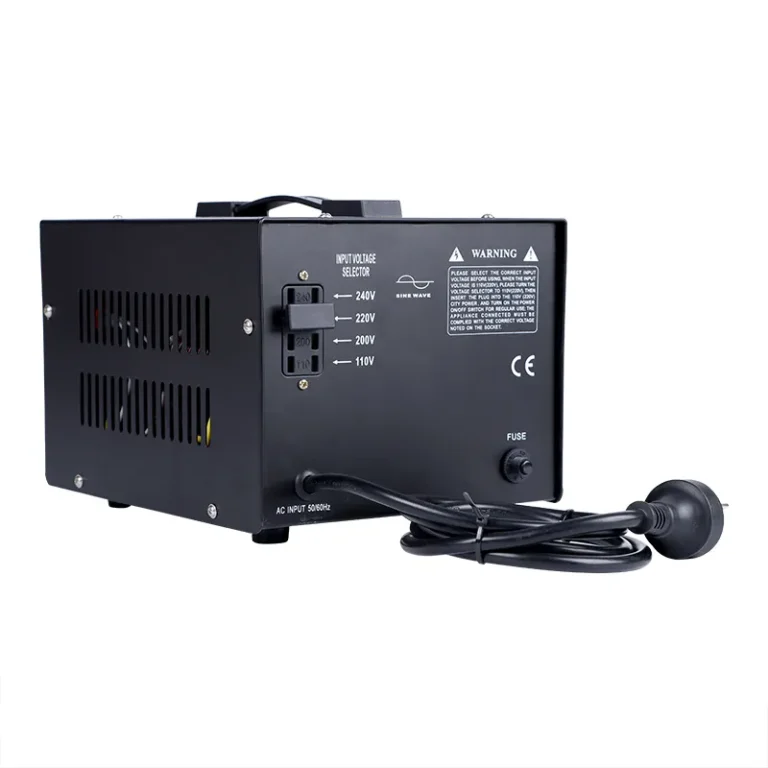

| 7 L+ / dual basket | 1700-2000W | ~2400W | 3000VA (STU-3000) |
| Commercial / large | 2000W+ | ~2800W | 3000-5000VA |
Air fryers are mostly resistive loads, so the start-up surge is small compared with a refrigerator or a pump. The number on the box is close to the real draw. That is why 2000VA covers almost every household model. If your fryer says 1800W and you want a little headroom for a kettle or a phone charger on the same unit, go straight to 3000VA.
220V vs 240V input: which one is your country
Here is the thing most buyers miss. A transformer wound for a 220V input will run on a 230V or 240V grid, but the output creeps up with it. A unit wound to give 110V on 220V input will push out around 115-120V on a 240V supply. Most air fryers tolerate that, but the heating element runs hotter and the thermostat cycles differently.
If your country runs 240V (most of the Middle East, Malaysia, parts of Africa), tell us and we wind the primary for 240V, or add 220V/240V input taps. It costs nothing extra at the factory and keeps the output dead accurate. Send us the country and we will confirm the winding before production.
How long can an air fryer run on a transformer
As long as you want, as long as the transformer is sized with margin. A 2000VA transformer feeding a 1500W fryer runs at about 75% load, which is the sweet spot for continuous duty. It will be warm to the touch, not hot. If the case gets too hot to hold comfortably, the unit is undersized, the airflow is blocked, or both.
Most air fryer cycles are 15-25 minutes. A correctly sized transformer handles that all day without complaint. The RCD and thermal protection in the ST series give you a clean shutdown if anything ever goes wrong, instead of a burnt-out appliance.
Frequency: does 50Hz hurt an air fryer
No. The heating element does not care about frequency, and the fan motor in an air fryer is usually a shaded-pole or universal motor that runs fine on 50Hz or 60Hz. The only small difference is the fan spins about 17% slower on 50Hz, which changes airflow slightly. In practice nobody notices it. Frequency matters far more for compressors and timing motors than for a heater and a fan.
Common mistakes we see with air fryer transformers
- Buying a converter instead of a transformer. Converters are for chargers, not heaters. It will overheat.
- Sizing on watts instead of VA. Air fryers are close to 1.0 power factor, so this rarely bites, but always round up.
- Forgetting the plug. US fryers come with a US plug; most 220V countries need an adapter or we fit a local socket on the output.
- Running the transformer on its side or covered. Vents need air. Keep it upright with clearance.

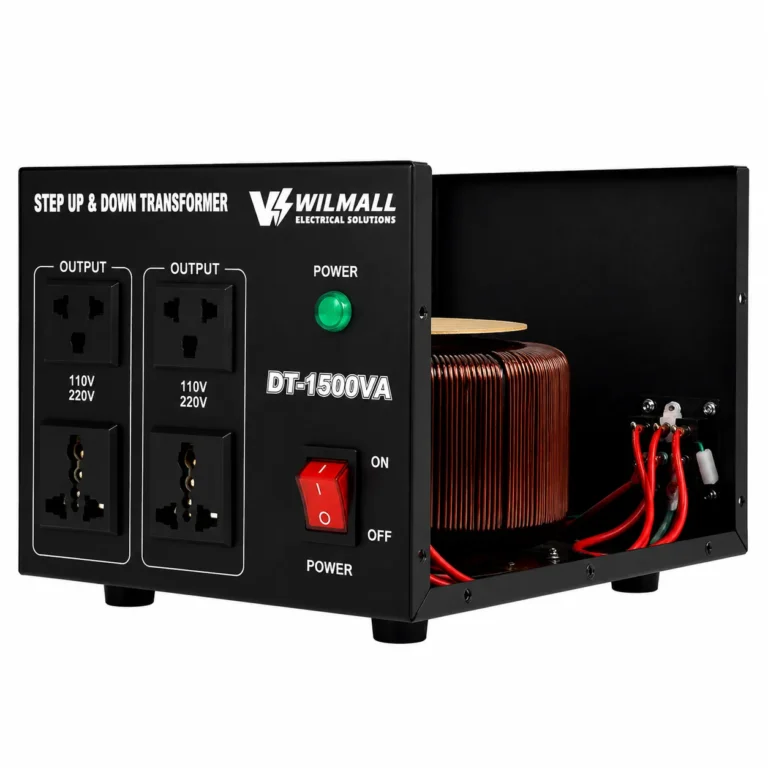

- Buying the cheapest option online. Aluminium-wound converters are cheap for a reason. Copper winding and a real RCD are worth the difference.
Why buy from a factory directly
Wilmall is a transformer factory in Yueqing, China. We wind, assemble and test every unit ourselves, so the transformer you order is the transformer we build. MOQ is 10 pcs per model, lead time 15-25 days, shipped FOB Ningbo or Shanghai with CE / RoHS documents and batch test reports. If you are a distributor stocking for your local market, we also private-label with your brand.
Air fryer vs deep fryer: the power question
If you are replacing a deep fryer with an air fryer, the load changes completely. Deep fryers are pure resistive heaters that run nearly continuously. Air fryers cycle their element and run the fan, so the average draw is lower but the peak is the same. The good news: a 2000VA transformer that ran a deep fryer will easily run the air fryer plus leave room for a kettle. Do not downsize just because the new appliance claims fewer watts — keep the margin and the transformer runs cooler.
And if you plan to run an air fryer and a microwave at the same time on one transformer, add both nameplate numbers, apply 30% margin, and buy the next size up. Kitchen appliances love to be switched on together at 7pm, and that is exactly when undersized transformers fail.
Sockets and plugs: matching your country
US air fryers come with a US plug. Most 220V countries use a different socket, so you have two options: plug an adapter into the transformer output, or order the transformer with a local-standard output socket fitted. We fit UK, EU, AU, South African and Middle East sockets at the factory, which looks far more professional than a pile of adapters behind the counter. Tell us your country when you order and we will match the output socket.
The input side also needs attention. The transformer plug must match your wall socket, and the unit must be earthed. Never cut the earth pin off a plug to make it fit an old socket — a transformer on an unearthed outlet is a shock risk, especially in a kitchen with water around.
Testing the setup before daily use
When the transformer arrives, do a quick check before you plug in the fryer. Run the transformer with no load for a few minutes and listen for anything unusual. Then plug in the air fryer, set it to its lowest setting, and run it for five minutes. The case should be warm, not hot, and the fryer should sound normal. If the RCD trips or the unit smells hot, stop and contact us — that is what the 12-month warranty is for.
A batch test report ships with every Wilmall transformer, so you can see the measured output voltage and load test results for your actual unit. Keep it with the warranty card.
Buying for resale: what to stock
Distributors stocking transformers for the air fryer market tell us the 2000VA size covers about 80% of enquiries, with 3000VA for the large dual-basket models. A two-SKU range answers almost everything a shop assistant will hear. Private labelling is available from MOQ 10 pcs per model, and we can print the wattage compatibility list on the carton so your staff do not have to memorise it.
Frequently asked questions
Air Fryer Sizing: The Heater and Fan Combo
An air fryer combines a heating element and a convection fan, and both draw at once during cooking. A typical air fryer draws 1200W to 1700W, and the fan adds a small amount on top. The practical sizing is 2000VA for a standard air fryer, which covers the running load with margin for the heater cycling. Air fryers run for 15 to 30 minutes at a stretch, so the transformer should handle continuous duty, which our ST series is rated for. If the air fryer runs at the same time as other kitchen appliances, such as a kettle, add their wattages before sizing. The heater cycles on and off, so the transformer handles repeated surges without overheating. Send us the air fryer’s nameplate input rating and we will confirm the exact transformer size for your kitchen setup.
The 30% Headroom Rule for Air Fryers
When you size a transformer for an air fryer, apply the 30 percent headroom rule the same way you would for any kitchen appliance. Take the nameplate input wattage, add 30 percent, and choose the next standard size up. A 1500W air fryer needs about 1950VA, so a 2000VA transformer is the right choice, and a 1700W unit is also comfortable on 2000VA. This margin keeps the transformer from running at the edge during the heater cycles, and it covers the fan’s contribution to the load. If you expect to run other appliances through the same transformer, add their wattages to the air fryer’s before applying the rule.
What size step down transformer do I need for an air fryer?
A standard household air fryer needs a 2000VA step down transformer. Compact 900W models work on 1500VA, and large or dual-basket units need 3000VA. Always check the nameplate wattage first.
Can I use a 220V transformer on a 240V supply for an air fryer?
It will run, but the output rises to about 115-120V. For accurate output, order a unit wound for the 240V primary or with 220V / 240V input taps.
Why can I not use a travel converter for my air fryer?
Travel converters are rated for 50-200W loads. An air fryer draws 1200-1800W and runs for long cycles, which overheats a converter. You need a continuous-duty step down transformer.
Does 50Hz vs 60Hz matter for an air fryer?
No. The heating element is frequency-independent and the fan runs fine on both. Frequency matters for compressors and timing motors, not for an air fryer.
Can I order air fryer transformers with my own brand?
Yes, private labelling with your logo, colour and carton is available from MOQ 10 pcs per model, shipped factory direct.
