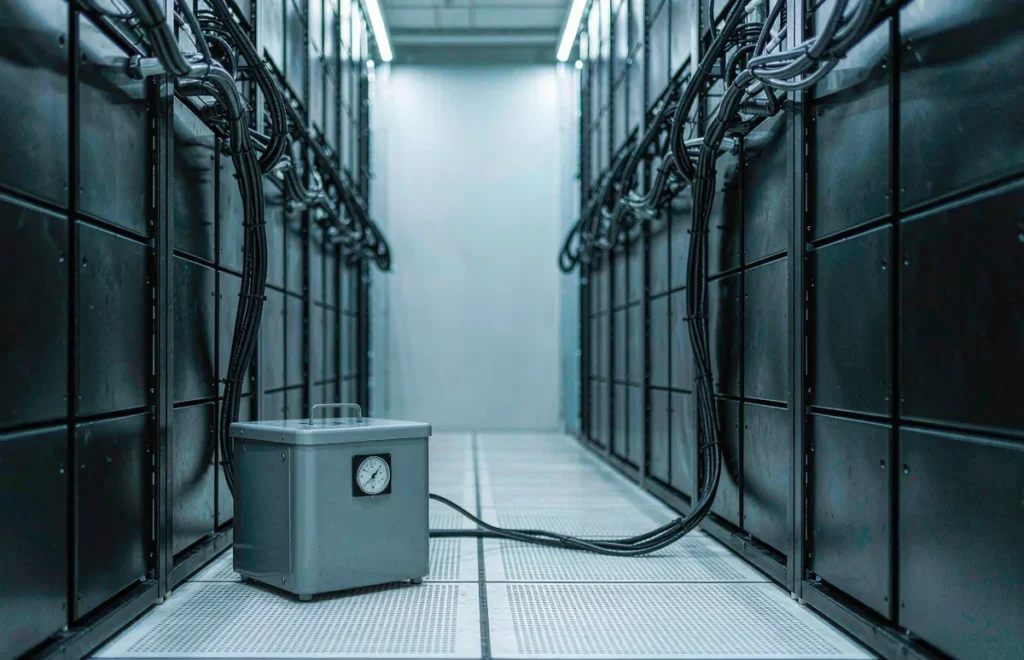

Step Down Transformer for Server Rooms and Data Centers

Servers are the one load you cannot switch off to see if the transformer holds. If you are running imported 110V racks in a country with 220V or 230V mains, the transformer sits between your mains and everything that matters, and a wrong size shows up as random reboots, an overheating unit in a locked room, or a UPS that trips on transfer. We build these units in Yueqing, China, and most of the server room orders we ship go to offices, clinics, hotels and small data rooms in Nigeria, the Gulf, Southeast Asia and Latin America. Here is how we size them, and what to send us so we can do the maths for you.

Why 220V Sites End Up Running 110V Server Gear

Most of the hardware in the second-hand and refurbished market is North American. Rack servers, network switches, KVM units, small UPS boxes and storage arrays from the US and Canada are built for 120V nominal, which in practice means anything from 100V to 127V. If you buy that equipment for a site in Manila, Lagos, Dubai or Lima, you have two choices: replace the power supplies, or put a step down transformer in front of the rack. Replacing PSUs is often impossible on older gear, and the replacement parts cost more than the transformer did.

That is the whole reason this product exists. A step down transformer takes your local 220V or 230V and hands the rack a clean 110V or 120V feed with the current capacity to survive start-up surges.

The mistake we see most often is sizing from the label on the front of the server. That sticker usually shows one power supply, not two, and it shows a worst-case figure the manufacturer never expects you to run continuously.

How to Add Up the Real Load in a Server Room

Start with nameplate ratings, then apply the two corrections that matter. The first is redundancy: if a server has two power supplies for failover, you still count both, because both can draw at the same time and you are not going to unplug one before switching the transformer on. The second is the derating factor, which converts a nameplate rating into a realistic continuous draw.

Here is a worked example for a small room with two racks, which is roughly the size of installation we ship most often.

Equipment	Qty	Nameplate each	Total nameplate	Continuous estimate
1U rack server, dual PSU	4	500 VA	2,000 VA	1,300 VA
Network switch	2	150 VA	300 VA	240 VA
Storage array	1	400 VA	400 VA	260 VA
Rack UPS charging	2	1,000 VA	2,000 VA	1,400 VA
KVM, monitor, small devices	1 set	200 VA	200 VA	150 VA
Total	—	—	4,900 VA	3,350 VA

So the real continuous demand is around 3.35 kVA, not the 4.9 kVA you would get by reading nameplates only. Now add headroom. We work to 30 percent on a server room, because the load grows (somebody always adds a switch), the room runs hot, and the mains in many of our markets swings more than it should. That gives you about 4.4 kVA, which is why a 5 kVA unit is the right answer here, not a 3 kVA one.

If your site is in a building where the supply already runs low in the evening, go up one more step. Undersizing is the single most common reason a transformer ends up back on a pallet.

Sizing Rules We Use on the Factory Floor

Nameplate numbers are honest but conservative. A server that wears a 500 VA label rarely pulls 500 VA for hours on end; typical draw sits somewhere between 55 and 70 percent of the label, depending on load and ambient temperature. We use 65 percent as a working figure and then add the headroom on top.

Three rules cover most server room jobs.

• Count both power supplies. Redundant PSUs both energise on start-up, and if one fails the other carries the full load.
• Give continuous duty 30 percent headroom. These units run 24 hours a day, every day. A transformer that sits at 95 percent of rating will run hot and age fast.
• Add the supporting loads. Air conditioning in the room, lighting, monitoring gear, door controllers. People forget the AC, and on a hot day it is the largest single load in a small room.

One more thing buyers ask about: frequency. These are 50Hz markets, and your servers do not care, because switch-mode power supplies rectify the input anyway. Motors do care, which is why we handle pump and compressor loads differently, but for a rack room the frequency side is a non-issue.

UPS, Harmonics and Why the Pairing Matters

A rack UPS and a transformer interact more than most buyers expect. Two points are worth knowing before you order.

First, inrush. When a transformer is energised, it can pull several times its rated current for a few cycles while the core magnetises. If your upstream breaker is sized tightly, that pulse trips it. We build soft-start behaviour into our larger units, and we will tell you the recommended upstream breaker curve when we quote, because a C-curve breaker behaves very differently from a B-curve on this load.

Second, harmonics. Modern switch-mode supplies and UPS rectifiers draw current in short, sharp pulses, and that current is not a clean sine wave. On a small installation it rarely causes trouble. On a room with a dozen servers plus UPS charging, you may see the transformer run warmer than the kVA figure suggests, and you may hear a faint hum that comes and goes with load. Both are normal to a degree. If you are pushing past about 10 kVA of this kind of load, tell us the equipment list and we will discuss a K-rated or oversized winding rather than pretending a standard unit will behave identically.

Wiring, PDU and Where to Put the Unit

Placement is not a detail. A transformer needs air. Leave clearance on every vented side, keep it out of a sealed cabinet, and do not bury it under cable trays. In rooms with no dedicated cooling, surface temperature will rise 20 to 30 degrees Celsius above ambient on a full load, and that is the design, not a fault.

For the output side, we usually advise a small distribution arrangement rather than daisy-chaining PDUs. Give each rack its own protected feed with the right breaker, keep the neutral and earth properly sized, and fit an RCD upstream. Earthing matters more than people assume in these rooms, because a floating earth on a rack can create the kind of intermittent fault that takes days to find.

On the input side, run the transformer from its own circuit. Sharing a circuit with air conditioning or a workshop socket invites nuisance trips when the compressor kicks in.

One Big Unit or Two Smaller Ones?

This is the question we get from buyers who have already been burned once. Splitting the load over two transformers gives you partial redundancy: one unit can fail and half the room stays up. It also means two points of maintenance and a bit more cost. For a two-rack office room, a single well-sized unit with a spare circuit is usually the sensible answer. For anything hosting live payment, medical or telecom equipment, two units with separate feeds is the layout we recommend, and we will build them as a matched pair on the same order so the winding and test records line up.

Either way, give yourself a way to isolate. A transformer that cannot be switched out for a service without shutting the room down will never get serviced.

What to Send Us for a Quote

You do not need to have the sizing figured out. Send us four things and we will come back with a number and a recommended model.

• The site country and the voltage you have at the wall (220V, 230V or 240V).
• Your equipment list with nameplate ratings, or photos of the labels.
• How many power supplies each server has.
• Whether the room must stay live at all times, and whether you want one unit or two.

From there we quote at FOB Ningbo or Shanghai, with MOQ 10 pcs for standard models and 15 to 25 days production. Every unit is copper wound, batch tested, and shipped with its test record. The warranty is 12 months.

For the wider range, our step up & down transformers cover bidirectional duty when you also need to feed 220V equipment from a US-style supply, and if your room is part of a larger office build-out, the sizing logic in our step down transformer for offices guide covers the IT equipment side of the same calculation. You can also browse more application guides for other equipment types.

Ambient Temperature Is the Number Most Buyers Ignore

Every transformer has a temperature rise, and that rise sits on top of whatever the room already is. A transformer rated for a 40 degrees Celsius ambient is a different machine from one expected to work in a room that reaches 38 degrees in the afternoon with no cooling at all.

In practice, two things happen in a small server room without dedicated air conditioning. The first is a genuine derating requirement: above about 40 degrees Celsius, you should de-rate capacity rather than pretend the rating still applies. The second is that the room itself gets hotter, because the transformer is now a heat source inside a closed space. If you cannot add cooling, then buy one size larger and treat the extra capacity as thermal margin, not as spare power you can fill later.

We usually ask for the highest summer temperature at the site. It changes the recommendation more often than buyers expect, especially for Gulf and West African installations.

What Goes Wrong in the First Week

The failures we hear about are rarely the winding. They are installation issues, and most of them are avoidable.

• The breaker trips on power-up. Inrush current on the first cycle looks like a fault to a tight breaker. Fit the recommended curve, and if you are unsure, tell us the breaker rating and we will confirm it before shipping.
• The unit buzzes louder than expected. Loose laminations sound like that, but so does a transformer bolted straight to a hollow partition wall. Rubber pads and a solid mounting surface usually solve it.
• Voltage at the rack reads low. That is usually voltage drop on undersized output cable, not the transformer. Check cable cross-section before blaming the unit.
• Nuisance RCD trips. Filtered power supplies leak a small current to earth by design. A 30mA RCD protecting twenty of them can trip for no obvious reason. Split the circuits, or use a type A device.
• Heat build-up in a closed cabinet. We have seen a correctly sized transformer fail inside a sealed rack because nothing could move the air. Ventilate, or mount outside the cabinet.

None of these are exotic. All of them cost a service call, and all of them are cheaper to prevent than to fix.

Isolation Transformer or Step Down Transformer?

Buyers sometimes ask whether they should be ordering an isolation transformer instead. The honest answer depends on why you are asking.

If your problem is simply voltage, a step down transformer is the smaller, cheaper and more efficient answer. You get 110V out of 220V, with normal electrical continuity between input and output.

If your problem is noise, spike carry-over or a floating supply, then an isolation design earns its cost. An isolation transformer breaks the direct electrical path between primary and secondary, which reduces common-mode noise and gives you a separately derived supply you can earth at the point you choose. In rooms with sensitive measurement equipment or long cable runs picking up interference, that difference is real. For a straightforward rack of servers, it usually is not worth the extra money.

We build both, so we will tell you which one your installation actually needs rather than defaulting to the more expensive option.

Copper Windings, Testing and the Paperwork

Two units with the same kVA rating and the same enclosure are not the same product. The difference is usually inside.

We wind copper, not aluminium. Copper carries more current per unit of cross-section, runs cooler at the same load, and holds its dimensions after years of thermal cycling. It also costs more, which is exactly why some suppliers quietly switch to aluminium and keep the label the same. If you are comparing quotes and one looks unreasonably cheap for the kVA, ask what the winding material is. Ask for it in writing.

Every unit we ship is tested before it leaves the building: winding resistance, insulation resistance, no-load current, and a full-load run. The results go out with the goods as a batch test record, tied to that unit, not a generic certificate with no serial number on it. For server room orders where a failure means downtime, that sheet is what your insurance and your client will ask to see.

Standard models run at MOQ 10 pcs. Matched pairs of units for a redundant layout we build together on the same batch so the winding data and test results line up, and we will say so on the documents. Production is 15 to 25 days, shipped FOB Ningbo or Shanghai, with a 12-month warranty. If you want to talk through a layout before ordering, send the plan and we will mark it up.

If you are not sure what size you need, send us the equipment list and a photo of the labels. We will work out the load, tell you which model fits, and quote it. Reach us at sales@wilmall.com or on WhatsApp at +86 197 3022 6757.
